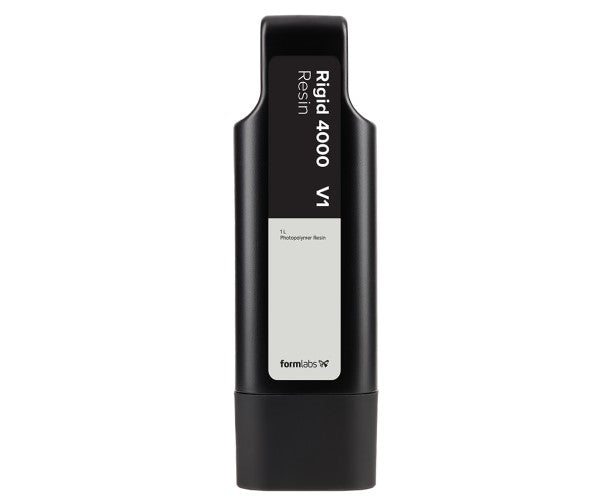

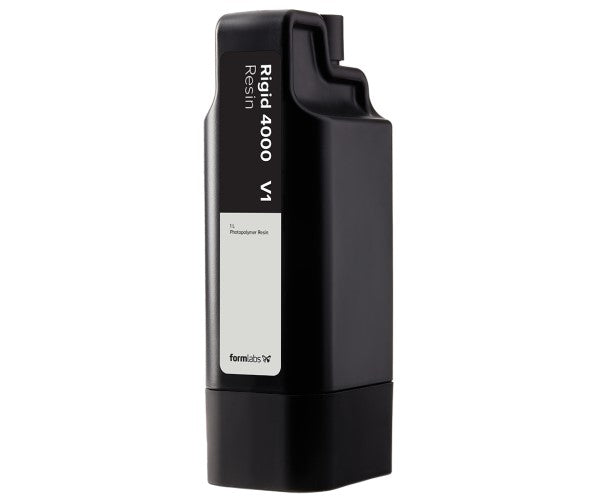

Rigid 4000 V1, 1L | Form 4

Glass-filled Formlabs Rigid 4000 V.1 Resin prints with a smooth, polished finish, ideal for stiff, strong parts that can withstand minimal deflection.

You can consider Rigid 4000 Resin for general load-bearing applications. The “4000” in the name represents the material’s tensile modulus. If you need a stiffer material, try Rigid 10K Resin.

Supports print resolutions: 100 and 50 microns.

Post-curing is required.

Rigid 4000 Resin decreases the lifetime of resin tanks.

Applications

• Mounts and brackets
• Jigs and fixtures
• Thin-walled parts

Material Properties

• Ultimate Tensile Strength: 69.0 MPa
• Tensile Modulus: 4.1 GPa
• Flexural Strength: 105. MPa
• Elongation at Break: 5.3%
• Notched Izod: 23 J/m
• Heat Deflection Temp. @ 0.45 MPa: 77 °C
• Thermal Expansion (0-150 °C): 63 μm/m/°C

3D Printer Compatibility

• Formlabs® Form 4
