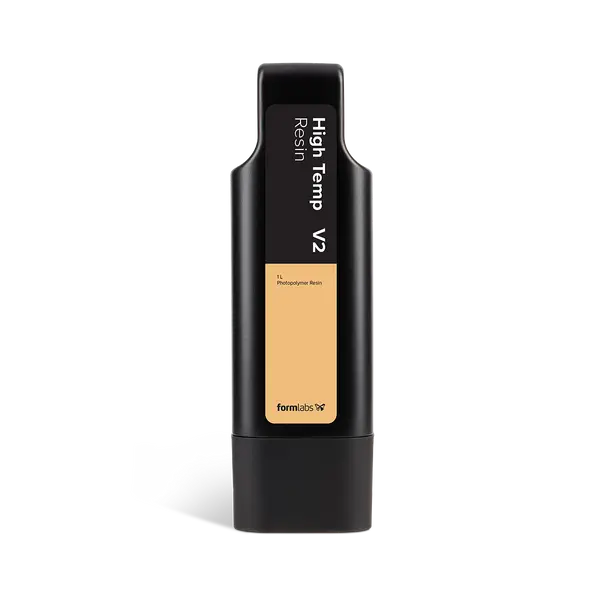

High Temp Resin V2.1, 1L | Form 4

Formlabs® High Temp Resin V.2.1 has a heat deflection temperature (HDT) of 238 °C @ 0.45 MPa, the highest among Formlabs resins. It can 3D print detailed, precise prototypes with high thermal stability.

Supports print resolutions: 100, 50, and 25 microns. Post-curing is required.

Applications

• Hot air, gas, and fluid flow
• Heat-resistant mounts, housings, and fixtures
• Molds and inserts

Material Properties*

• Ultimate Tensile Strength: 58 MPa
• Tensile Modulus: 2.8 GPa
• Elongation at Break: 3.3%
• Flexural Modulus: .6 GPa
• Notched Izod: 18 J/m
• Heat Deflection Temp. @ 0.45 MPa: 120 °C
• Thermal Expansion: 80 μm/m/°C

*Data was obtained from parts printed using a Form 2, 100 micron, High Temp settings,
and post-cured with Form Cure at 60 °C for 60 minutes.

3D Printer Compatibility

• Formlabs® Form 4
