Form Wash L V2
by Formlabs
Original price
$6,660.00
-
Original price
$6,660.00
Original price
$6,660.00
$6,660.00
-
$6,660.00
Current price
$6,660.00
SKU FHL-WA-03
Every SLA 3D printed part requires thorough washing to remove residual resin.

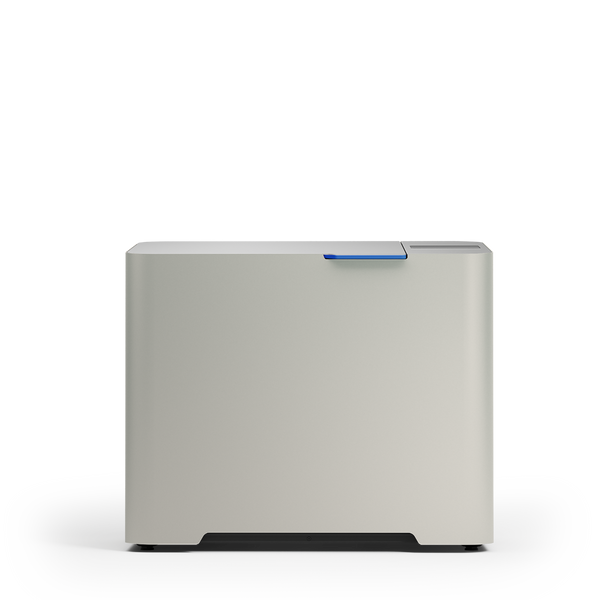

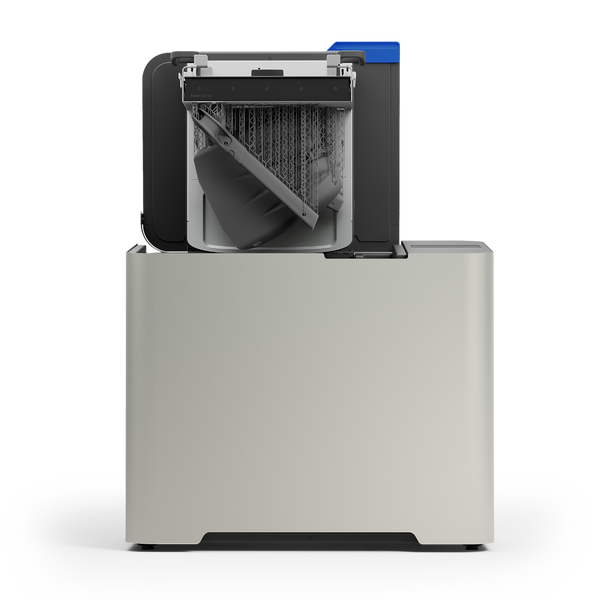

The Formlabs Form Wash L V2 (2nd generation) automates this post-processing step, delivering smooth, high-quality results with every cycle. To prevent warped prints from over-soaking, the system automatically lifts parts from the solvent to air dry once finished. Plus, an embedded solvent monitor ensures peak cleaning performance by alerting you when it’s time for a refresh.
Compatible with all Formlabs SLA printers, it can accommodate one Form 3L build platform or two Form 3 platforms using the included adapter.
Lead Times: 5 weeks
3D Printer Compatibility
- Form 4L, 4BL
- Form 4 Form 4B
- Form 3, Form 3L, Form 3B, Form 3BL
- Form 2
Technical Specs
| Dimensions | 78.0 x 46.0 x 67.0 cm 30.7 x 18.1 x 26.4 in Height when open: 113 cm (44.5 in) |
| Weight | 56.7 kg (without solvent) 125 lb (without solvent) |
| Bucket Volume | 43.0 L 11.4 US gal |
| Maximum Part Size | 35.3 x 20 x 29.6 cm 13.9 x 7.9 x 11.7 in |
| Recommended Operating Environment | Suggested 18-28 °C Suggested 64-82 °F |
| Agitation Method | Magnetically coupled impeller |
| Included Accessories | a. Wash Bucket b. Wash Basket c. Electric Solvent Pump d. Flush Cutters e. Rinse Bottle f. Gloves |
| Power Requirements | Input (North America) 100-120 VAC, 50-60 Hz, 1 A |
| Compatible Solvents | IPA, TPM, Water, Formlabs Resin Washing Solution |
