Fast Model Resin, 1L | Form 4

Formlabs® Fast Model Resin | Fastest resin, capable of 3D printing at speeds of over 100 mm per hour

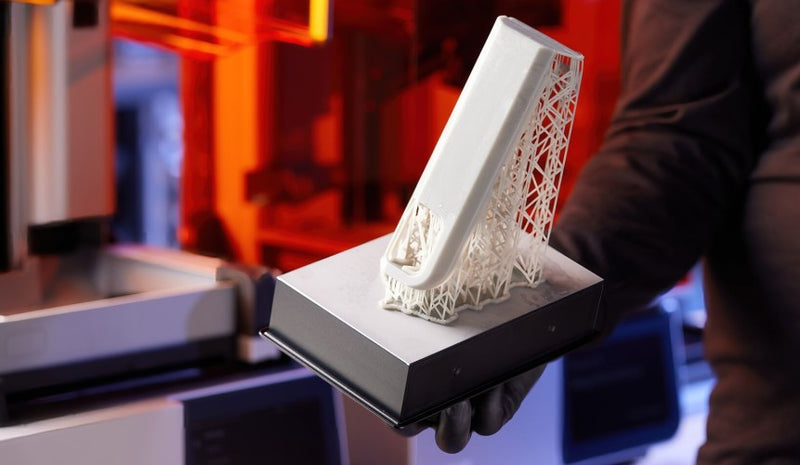

Formlabs' Fast Model Resin can print dental models in less than 10 minutes or large prototypes in less than 2 hours. This highly accurate resin leverages the Form 4
ecosystem to print three times faster than previous formulations of Draft Resin.

Use 200 micron settings for the fastest print speeds, or use 100-micron settings for more
detailed models.

 Applications

• Initial prototypes
• Rapid design iterations
• Dental models for thermoforming aligners

Material Properties*

• Ultimate Tensile Strength: 62 MPa
• Tensile Modulus: 2.67 GPa
• Elongation at Break: 11%
• Flexural Strength: 106 MPa
• Notched Izod: 37 J/m
• Heat Deflection Temp. @ 0.45 MPa: 76 °C

*Data was obtained from parts printed on a Form 4 printer with 100 μm Fast Model Resin settings, washed in a Form Wash for 5 minutes in ≥99% Isopropyl Alcohol, and post-cured at 60°C for 15 minutes in a Form Cure.

3D Printer Compatibility

• Formlabs® Form 4
• Formlabs® Form 4B
