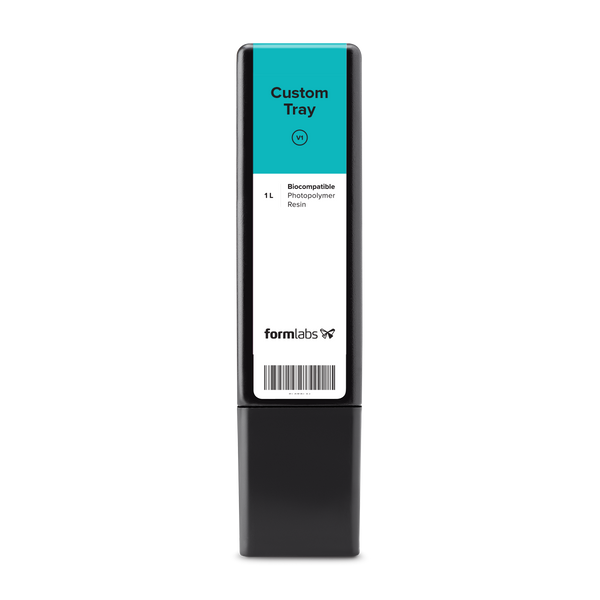

Custom Tray Resin, 1L

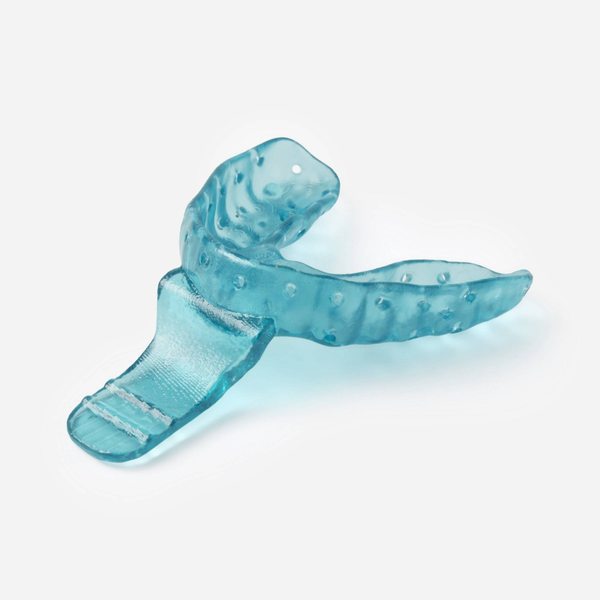

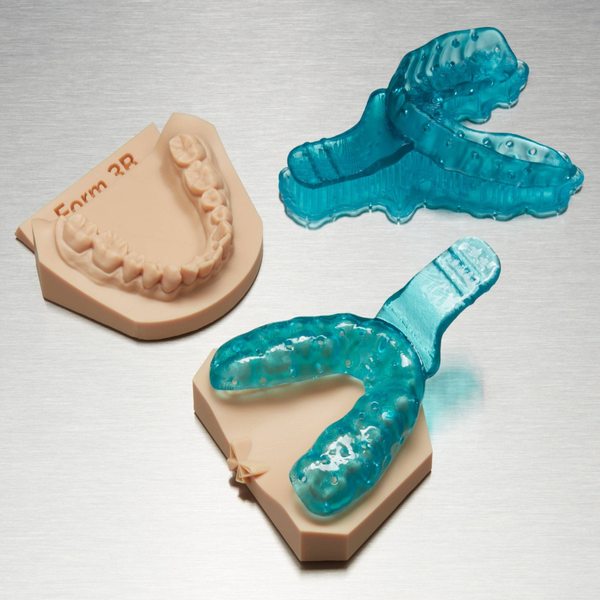

Discover Formlabs Custom Tray Resin, the rapid-printing biocompatible material tailored to create custom impression trays directly. This versatile resin is perfect for dental procedures, including implants, dentures, crowns, bridges, and comprehensive cases.

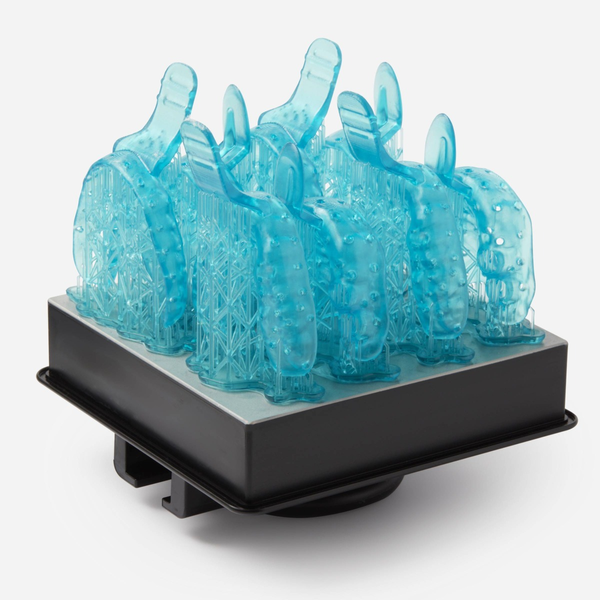

By leveraging the power of digital manufacturing, Formlabs Custom Tray Resin ensures consistent and accurate impressions and top-notch dental work. With its 200-micron layer heights, this resin allows for the speedy production of full trays, significantly reducing labour time and boosting efficiency.
- Supports print resolutions: 200 microns
- Post-curing is required
- Compatible with any Form 3/3B Resin Tank
- Compatible with Form 3 Build Platform
Material Properties
- Ultimate Tensile Strength: ≥ 70 MPa
- Young's Modulus: > 2500 MPa
- Elongation: > 3%
- Hardness Shore A: < 80A
Material properties may vary based on part geometry, print orientation, print settings, and temperature. Data for post-cured samples were measured on Type IV tensile bars printed on a Form 2 printer with 200 μm Custom Tray Resin settings, washed in a Form Wash for 10 minutes in ≥99% Isopropyl Alcohol, and post-cured at 60°C for 30 minutes in a Form Cure.
3D Printer Compatibility
- Form 3B
- Form 2
- Form 3BL
- Form 3B+
NOT COMPATIBLE with FORM 3!
Resin Tank Compatibility
- Form 2 LT Tank
- Form 3/3B Resin Tank V1
- Form 3/3B Resin Tank V2
- Form 3/3B Resin Tank V2.1
- Form 3L/3BL Resin Tank V1
