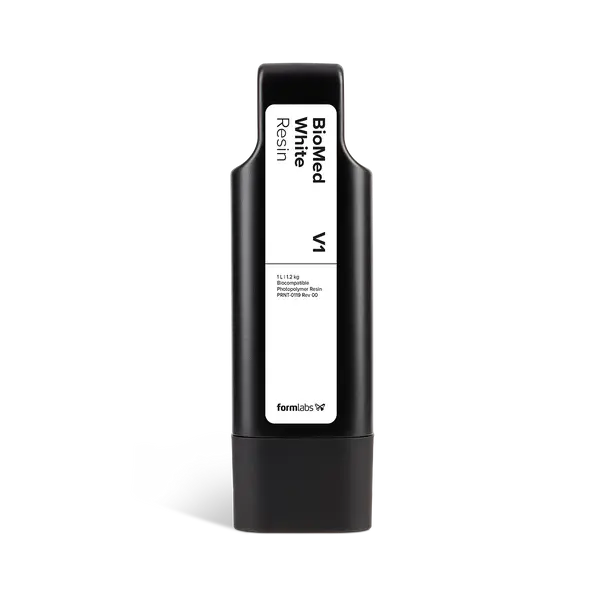

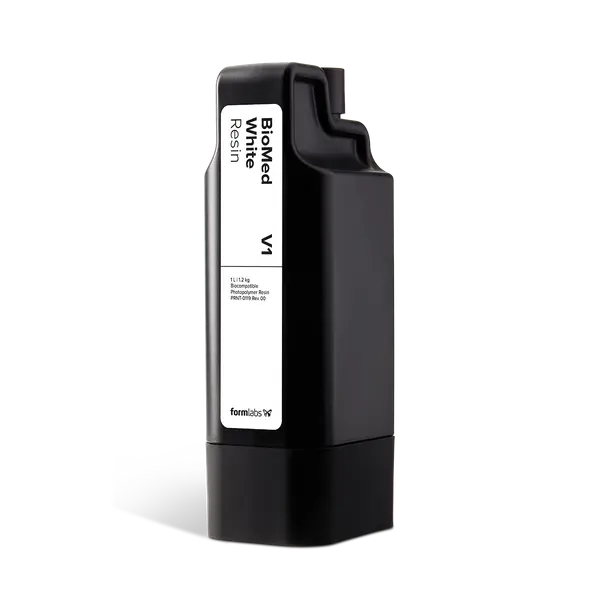

BioMed White V1, 1L | Form 4

Formlabs BioMed White Resin is a rigid material for biocompatible applications requiring long-term skin contact or short-term mucosal membrane contact. Unique in Formlabs' portfolio, this medical-grade material is also USP <151> Pyrogen and Acute Systemic* toxicity tested and can be used in applications with short-term tissue, bone, and dentin contact. Parts printed with BioMed White Resin are compatible with standard solvent disinfection and sterilization methods.

• Manufactured in Formlabs' ISO 13485 facility
• USP Class VI certified, which makes it suitable for pharmaceutical and drug delivery applications.

Supports print resolutions: 100 µm and 50µm

Post-curing is required.

*United States Pharmacopeia (USP), Chapter <161> Transfusion and Infusion Assemblies and Similar Medical Devices.

Applications

• End-use medical devices and device components
• Cutting and drilling guides
• Anatomical models
• Patient-specific implant sizing models and molds
• Biocompatible Molds, Jigs + Fixtures
• Surgical tools and templates

Material Properties | Post-cured at 60ºC for 60 min

• Ultimate Tensile Strength: 45.78 MPa
• Tensile Modulus: 2020.16 MPa
• Elongation at Break: 10%
• Flexural Strength: 74.46 MPa
• Flexural Modulus: 2020.16 MPa
• Hardness Shore D, 80 D
• Notched Izod: 15.11 J/m
• Heat Deflection Temp @ 0.45 MPa: 67 ºC

3D Printer Compatibility

• Formlabs Form 4B
• Formlabs Form 4BL
