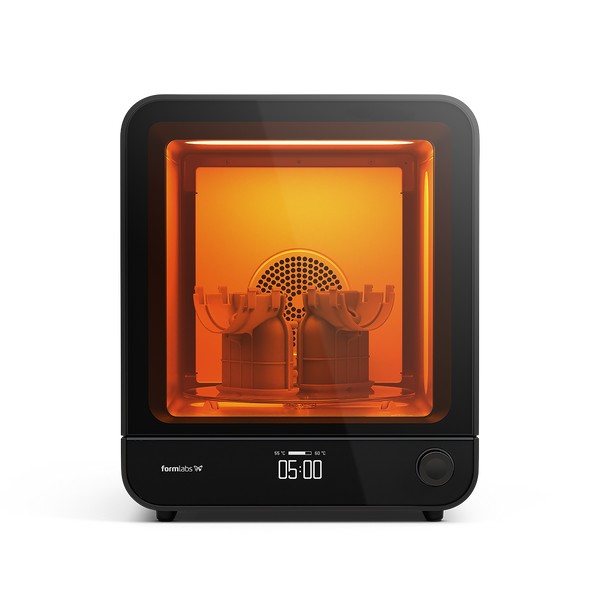

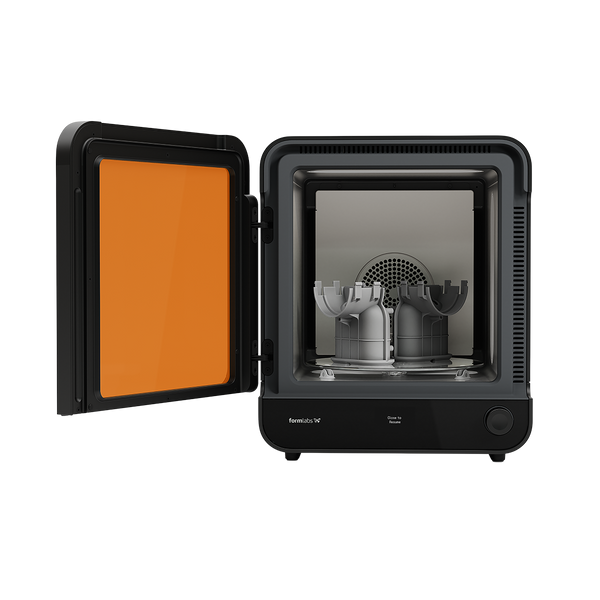

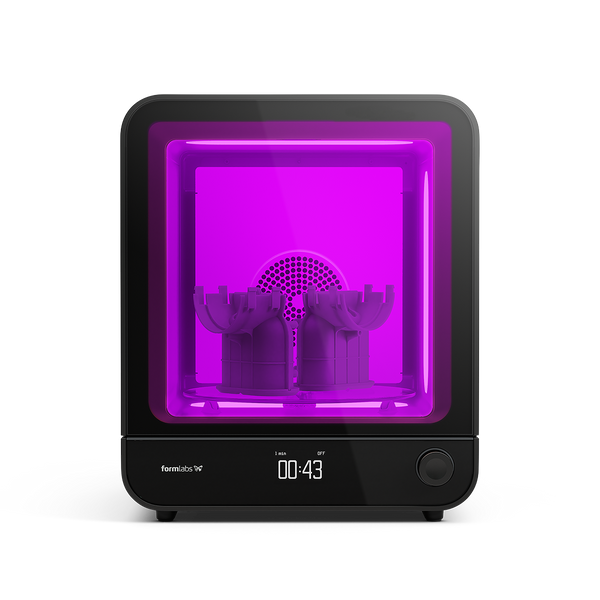

Form Cure 120V (2nd Generation)

Formlabs Form Cure (2nd Generation) precisely combines heat and 405 nm light to deliver tough, strong prints with unprecedented speed and consistency.

You can post-cure Form 4/B prints in as little as 60 seconds, with 4x more UV power, 5x faster heat-up times, and a 1.3x larger chamber. To begin curing, just select a validated preset for Formlabs 45+ materials. Advanced users can customize time and temperature to fit their specific needs.

Post-curing completes the chemical reaction started during printing, enhancing final part strength, toughness, heat resistance, and creep resistance while creating a harder, less tacky surface.

For biocompatible materials, post-curing is necessary to achieve the safety standards determined by regulatory agencies.

NOTE: Lead Time is 12 weeks

Highlights & Capabilities

• Near instant heat-up
  • 60 °C in 60 seconds
  • 80 °C in 150 seconds
• Fast curing:
  • General Purpose Resins in 60 seconds
  • Engineering & Biocompatible Resins in 3-15 minutes
• Reach temperatures up to: 100 °C
• Uniform irradiance of 14.5 mW/cm²
• Fit Large Form 4 Parts
  • 235 mm rotating turntable
  • 245 mm maximum part height

Technical Specs

• Dimensions
  • 33.7 × 40.4 × 37.2 cm | 13.3 × 14.0 × 15.9 in
• Turntable Diameter
  • 23.5 cm | 9.25 in
• Max Part Weight
  • 24.5 cm | 9.64 in
• Max. Cure Champer Temperature
  • 100 °C | 212 °F
• Light Source
  • 48 multi-directional LEDs
• LED Power: 150 W
• LED Radiant: 50 W
• LED Wavelength: 450 nm
• Power Requirements
  • Input (NA) 100 - 120 V
    VAC, 50-60 Hz, 15 A
    Input (EU) 220 - 240 V
    VAC, 50-60 Hz, 8 A

3D Printer Compatibility

• Form 4 / Form 4B
• Form 4L/Form 4BL
• Form 3/Form 3L
• Form 3B, Form 3BL
• Form 2
