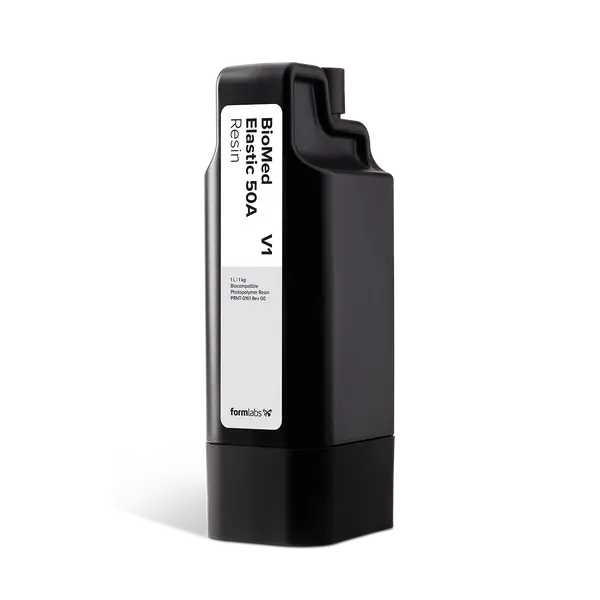

BioMed Elastic 50A, 1L | Form 4B
Formlabs® BioMed Elastic 50A, Resin is a soft, elastic, medical-grade material for applications requiring comfort, biocompatibility, and transparency. It is ISO 10993 and USP Class VI certified material, made in an FDA-registered ISO 13485 facility and can be used in applications for long-term skin contact (>30 days) and short-term mucosal membrane contact (<24 hours).
Reduce workflow times by eliminating molding to directly produce comfortable, patient-specific medical devices or soft tissue medical models surgeons can reference in the O.R.
Applications
- Comfortable medical devices requiring long-term skin contact
- Soft tissue models, including organs, muscle, skin, and small vasculature
Characteristics
- Comfortable
- Produce mass-personalized, medical-grade parts that are comfortable and feel great.
- Transparent
- Parts produced using this material appear transparent and clear to view how tools or objects flow within parts.
- Soft
- Produce soft tissue models that feel similar to human tissue and deliver biomechanical behaviours ideal for creating full-size hearts, gastrointestinal models, or small complex neurovascular models to bring into the O.R.
- Medical-grade material | Biocompatible Parts
- This material is suitable for biocompatible applications with long-term skin (>30 days), short-term mucosal membrane contact (<24 hours), and USP Class VI certifications.
3D Printer Compatibility
-
Formlabs® Form 4B
- Formlabs Form 4BL
Material Properties*
- Ultimate Tensile Strength: 2.3 MPa
- Stress at 50% Elongation: 1 MPa
- Stress at 100% Elongation: 1.3 MPa
- Elongation: 150%
- Tear Strength: 11 kN/m
- Hardness Shore A: 50A
*Material properties may vary based on part geometry, print orientation, print settings, temperature, and disinfection or sterilization methods used. Data were measured on post-cured samples printed on a Form 3B/+ with 100µm BioMed Elastic 50A Resin settings, washed in a Form Wash for 20 minutes in 99% Isopropyl Alcohol, and cured at 70°C, 30 minutes submerged in water in a Form Cure according to the Manufacturing Guide. BioMed Elastic 50A Resin was tested at NAMSA World Headquarters, OH, USA.
