KeyDenture® Base

KeyDenture® Base

by Keystone Industries
$406.00 - $813.00
$813.00
$406.00 - $813.00
$813.00
SKU 4220430
Shade: Original
Weight: 1 Kg

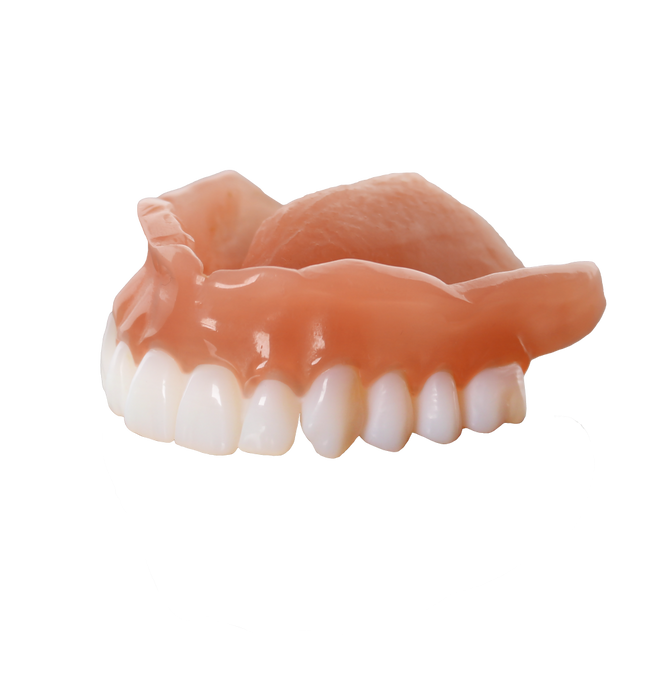

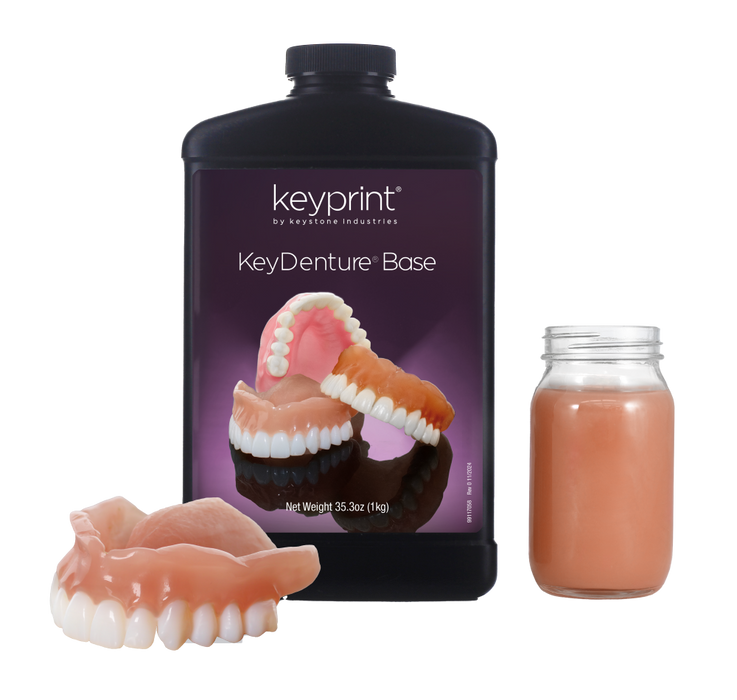

KeyPrint KeyDenture® Base by Keystone Industries is a photopolymer resin indicated for the 3D fabrication of denture bases, including removable full and partial dentures, in dental laboratories. Fabrication requires a computer-aided design and manufacturing (CAD/CAM) software and vat polymerization 3D printer utilizing wavelengths between 385nm-405nm.

KeyDenture® Base is designed for use in a digital dentistry workflow featuring a 3D scanner, design software, 3D printer, and post-curing unit to create custom oral denture appliances for patients with full or partial tooth loss.

NOTE: For any components that are used in conjunction with KeyDenture® Base, the user should review all applicable product labeling including Instructions for Use, user manuals, and other associated labeling. Strict adherence to all labeling is critical in assuring a safe and effective printed appliance.

Material Properties
  • Strain at break: >50%
  • Flexural Modulus: ≥2000 MPa
  • Maximum Stress Intensity Factor: ≥1.9 MPa m1/2
  • Total Fracture Work: ≥900 J/m^2
  • Water Sorption: ≤32 μg/mm3
  • Water Solubility: ≤1.6 μg/mm3
  • Viscosity: 1500 - 1900 cP
  • Biocompatibility: Pass
Features & Benefits
  • Durable
  • Fabricated to provide intra -oral retention of the device that is equal to or superior to the current standard
  • Cost-effective (less expensive than traditional denture materials)
  • Esthetics
    • KeyDenture Base offers realistic, life-like recreation of natural
      gingival tissue, and is available in four popular shades to enhance
      patient/smile confidence.
  • Compatibility:
    • KeyDenture Base is optimized for 385 - 405 wavelength printing technologies, allowing labs to minimize investment in materials and giving labs a material that is flexible enough to work with all 3D printing  technologies such as DLP, LCD, and LED printing technologies
  • Toxin-free
    • KeyDenture Base is TPO-free (only contains TPO-L), and is also free of toxic materials.
  • Low Viscosity
    • Allows labs to print faster, post - printing processing time is improved and lab workflow enhanced
3D Printer Compatibility*
  • Asiga Max with Otoflash
  • Shining 3D Accufab-L4D with Otoflash
  • Dreve LED and Uvitron 400W
  • *Keystone Industries continuously tests and certifies 3D printers compatibility. If your 3D printer is not in the above short list, please email us at info@proto3000.com
