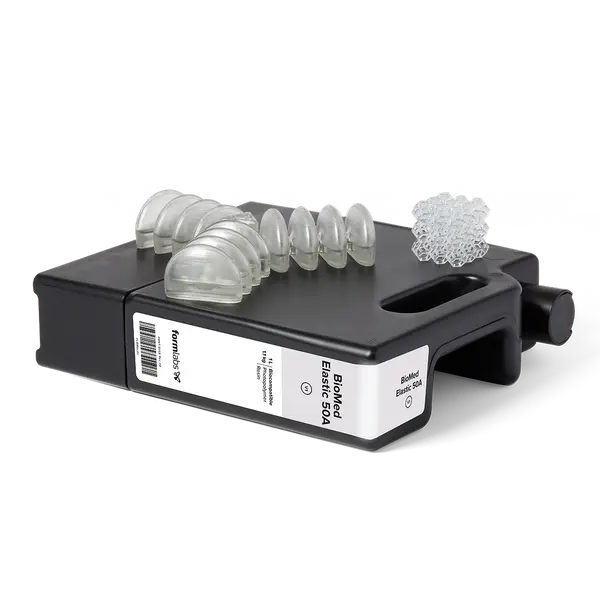

BioMed Elastic 50A Resin, 1L

Formlabs BioMed Elastic 50A Resin is a soft, elastic, medical-grade material for applications requiring comfort, biocompatibility, and transparency. It is ISO 10993 and USP Class VI certified material, made in an FDA-registered ISO 13485 facility and can be used in applications for long-term skin contact (>30 days) and short-term mucosal membrane contact (<24 hours).

Reduce workflow times by eliminating molding to directly produce comfortable, patient-specific medical devices or soft tissue medical models surgeons can reference in the O.R.

Applications

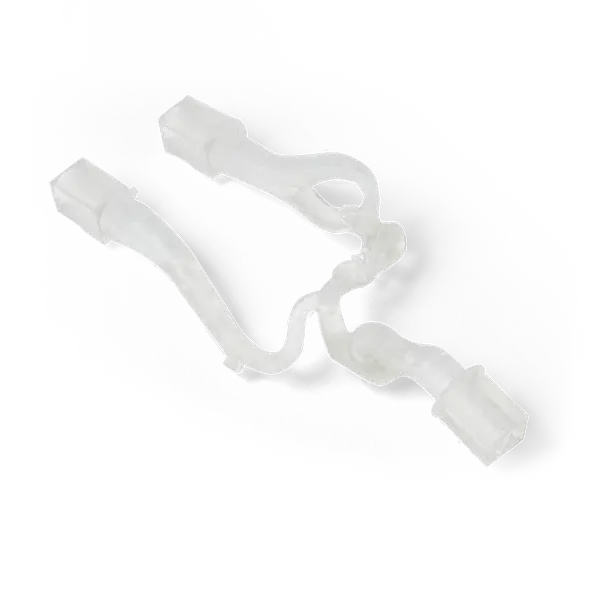

• Comfortable medical devices requiring long-term skin contact

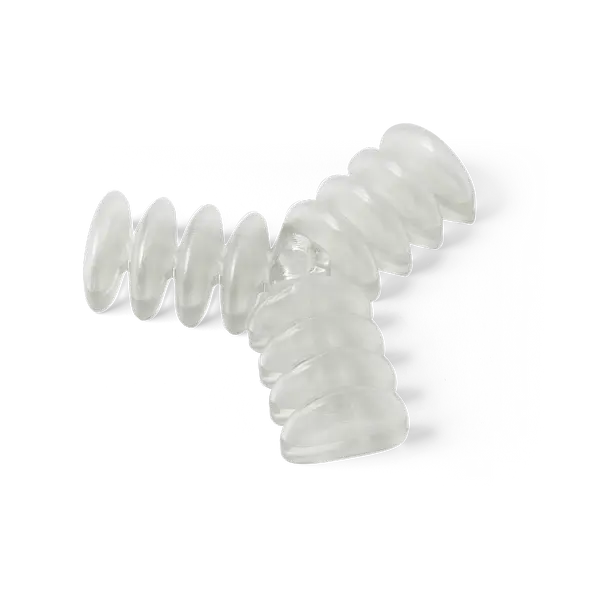

• Soft tissue models, including organs, muscle, skin, and small vasculature

Characteristics

• Comfortable
• Produce mass-personalized, medical-grade parts that are comfortable and feel great.
• Transparent
• Parts produced using this material appear transparent and clear to view how tools or objects flow within parts.
• Soft
• Produce soft tissue models that feel similar to human tissue and deliver biomechanical behaviours ideal for creating full-size hearts, gastrointestinal models, or small complex neurovascular models to bring into the O.R.
• Medical-Grade Material, Biocompatible Parts
• This material is suitable for biocompatible applications with long-term skin (>30 days), short-term mucosal membrane contact (<24 hours), and USP Class VI certifications.

3D Printer Compatibility

• Form 3B
• Form 3B+
• Form 3BL

Resin Tank Compatibility

• Form 3/3B Resin Tank V2
• Form 3/3B Resin Tank V2.1
• Form 3L/3BL Resin Tank V1
• Form 3L/3BL Resin Tank V2
• Form 3L/3BL Resin Tank V3

Build Platform Compatibility

• Form 3 Build Platform
• Form 3 Build Platform 2
• Form 3 Stainless Steel Build Platform
• Form 3L Build Platform
• Form 3L Build Platform 2L

Material Properties

• Ultimate Tensile Strength:  2.3 MPa
• Stress at 50% Elongation: 1 MPa
• Stress at 100% Elongation: 1.3 MPa
• Elongation: 150%
• Tear Strength: 11 kN/m
• Hardness Shore A: 50A
• *Material properties may vary based on part geometry, print orientation, print settings, temperature, and disinfection or sterilization methods used. Data were measured on post-cured samples printed on a Form 3B/+ with 100µm BioMed Elastic 50A Resin settings, washed in a Form Wash for 20 minutes in 99% Isopropyl Alcohol, and cured at 70°C, 30 minutes submerged in water in a Form Cure according to the Manufacturing Guide. BioMed Elastic 50A Resin was tested at NAMSA World Headquarters, OH, USA.
