Tough 1500 V2 Resin

Formlabs Tough 1500 (V2) is a stiff but compliant material with toughness that rivals polypropylene. It offers exceptional resistance to fractures, impacts, and shattering.
With this new resin formulation, you can create parts that balance stiffness and ductility, whether for compliant mechanisms like rugged enclosures with self-tapping
screws and snap fits.
Tough 1500 Resin V2 leverages the Form 4 Series to deliver 10 times higher fracture
toughness than the previous version.

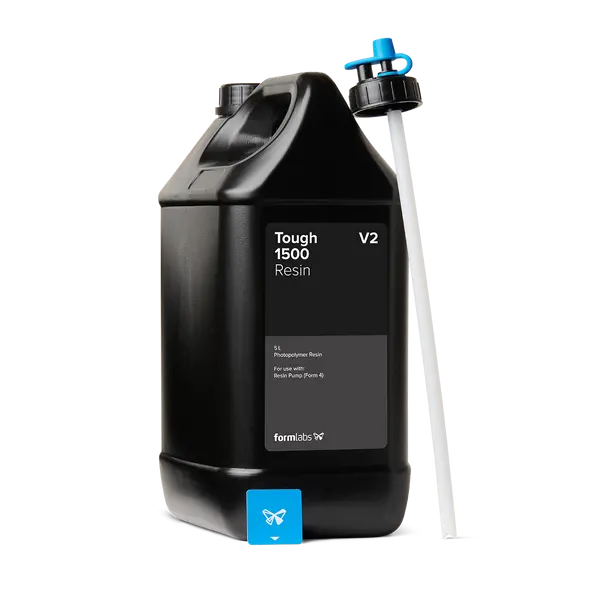

NOTE: The 5L container requires a Resin Pump to work.

Highlight and Benefits

• Tougher Where It Matters
  10 X higher work of fracture, so parts don’t fail when drilled, tapped, or cracked. Three times higher Gardner impact strength for thin walls that don’t shatter.
• Ductile and Resilient for Long-Lasting Compliant Parts
  Extremely high elongation at break (155%) and Ross flex fatigue (8,000 cycles) for features like snap fits and compliant mechanisms.
• High Environmental Stability for Demanding Applications
  The highest temperature and UV resistance (66°C HDT and –30.4% EAB* after 400 hours of accelerated aging) of any high-compliance (>100% EAB) SLA material.
  *When tested under ASTM D4459 Accelerated indoor aging standard.
• Tough Parts That Don’t Deform Over Time
  High creep resistance matching polypropylene, with less than 3% strain under 7 MPa load after 2 weeks.

Material Properties

• Ultimate Tensile Strength: 34 MPa
• Flexural Strength: 41.0 MPa
• Flexural Modulus: 1.37 MPa
• Elongation at Break: 155% (post-cured)
• Notched Izod: 42 J/m (post-cured)
• Shore Hardness, D: 76D
• Heat Deflection Temp. @ 1.8 MPa: 53 °C (post-cured)

Applications

• Prototypes requiring the toughness, compliance and resilience of polypropylene.
• Impact-resistant jigs and fixtures that survive long-term use on the
  factory floor.
• Tough and rugged enclosures with functional elements like self-tapping screw bosses and snap fits.
• Parts that need a combination of stiffness and ductility to create compliant mechanisms like latches, flexures, and dampers.

Post-Processing

• Form Wash (2nd Generation), STEP 1 - Duration: 10 minutes
• Form Cure (2nd Generation), STEP 2 - Duration: 12 minutes, Temperature: 70 °C
• Form Cure (1st Generation), STEP 2 - Duration: 60 minutes, Temperature: 70 °C

Compatibility

• 3D Printer Compatibility:
  • Form 4
  • Form 4B
  • Form 4L
  • Form 4BL
• Resin Tank Compatibility
  • Form 4 Resin Tank
  • Form 4L Resin Tank
• Compatible Build Platforms
  • Form 4 Build Platform
  • Form 4 Build Platform Flex
  • Form 4L Build Platform L
