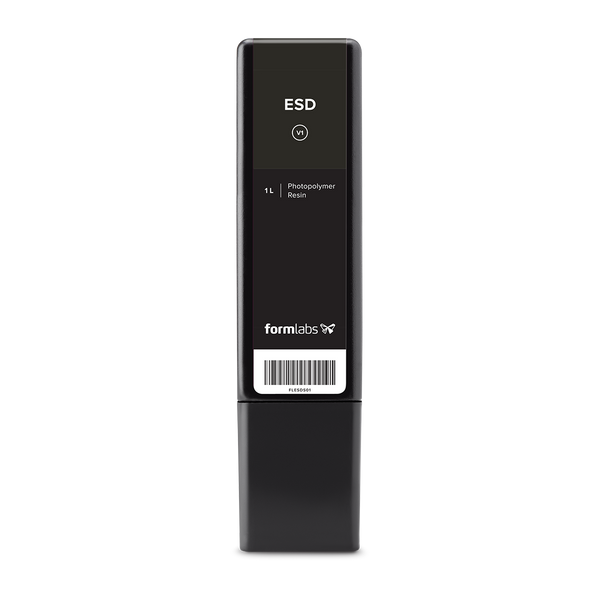

ESD Resin, 1L

Original price $339.00 - Original price $339.00
Original price
$339.00
$339.00 - $339.00
Current price $339.00
SKU RS-F2-ESDS-01
 More payment options

Looking to boost your electronics manufacturing lines? Look no further than Formlabs ESD Resin! With Formlabs' ESD (Electrostatic Discharge) Resin, you can prototype and validate production workflows, print static-dissipative parts that repel dust and powder and create enclosures to safeguard sensitive electronics from static discharge.

Don't let static ruin your electronics manufacturing game - switch to ESD Resin today!

Support print resolutions: 100 µm and 50µm

Post-curing is required.

Applications

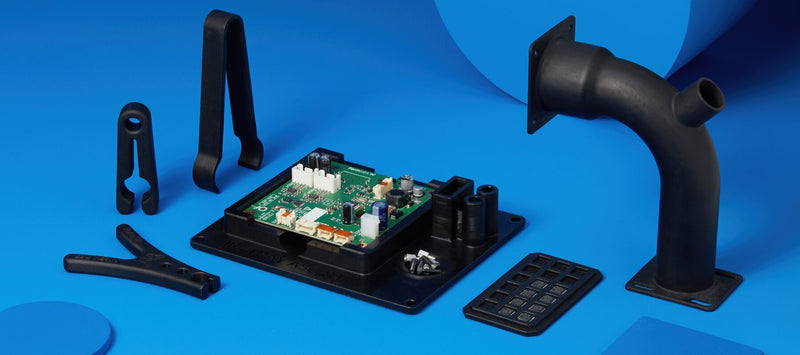

  • Tooling & fixturing for electronics manufacturing
  • Custom trays for component handling and storage
  • Anti-static prototypes and end-use components
Material Properties
  • Surface Resistivity: 105 - 108 Ohms/sq
  • Ultimate Tensile Strength: 44.2 MPa
  • Tensile Modulus: 1.937 GPa
  • Strain at break: 12%
  • Notched Izod: 26 J/m
  • Heat Deflection Temperature 0.45 MPA: 62.2ºC
  • Heat Deflection Temperature 1.8 MPA: 54.2ºC
3D Printer Compatibility
  • Form 3
  • Form 3+
  • Form 3L
  • Form 3B
  • Form 3B+
